PDI Engineered Hydraulic Power Units provide a reliable high efficiency and long life power source for an extensive range of hydraulic requirements. From Large Complex Hydraulic Systems to Simple Pump / Motor Units, these systems deliver maximum power output in a robust and compact design for both electric and diesel powered operations.

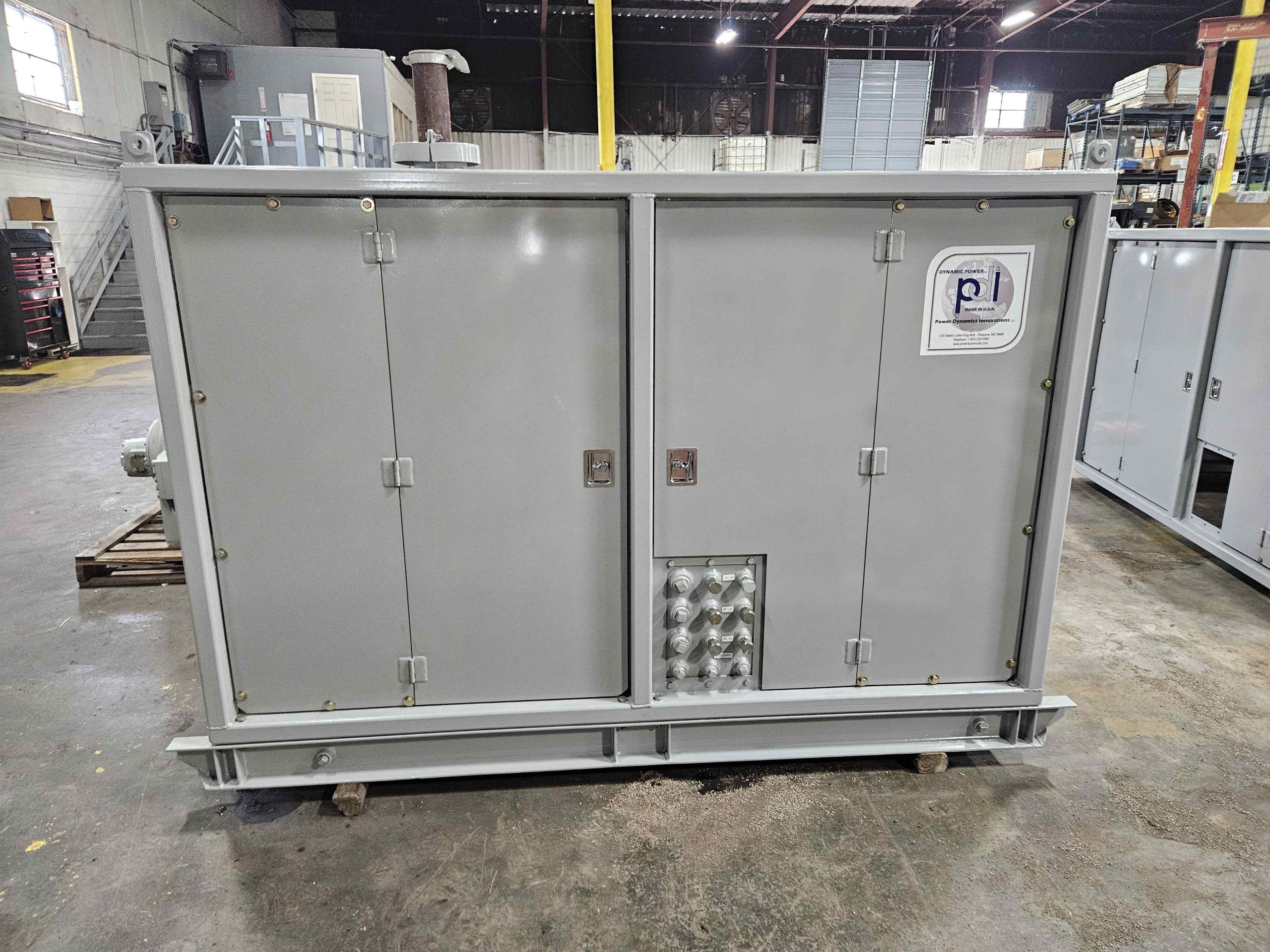

DUAL 200 HP HPU
PERFORMANCE SPECIFICATIONS
- Height: 98”
- Width: 107”
- Length: 109 1/2”
- Weight: 13,560 LBS (Wet)
- Oil Capacity: 300 GAL.
- Prime Mover: (2) 200 HP 1800 RPM Electric Motors
- Required Cooling Water: 50 GPM
Standard features include hydraulic reservoir, suction and return filter, heavy-duty pump, hydraulic cooler, pressure-control valves, pressure gauges, circuit breakers and start/stop controls engineered to client’s specifications.
DUAL 150 HP (80 KIP TENSIONER HPU)
PERFORMANCE SPECIFICATIONS
- Length: 91 1/16”
- Width: 91 1/16”
- Height: 98 3/16”
- Weight: 14,200 lbs.
- Oil Capacity: 300 gal.
We invite you to experience the PDI difference; call us today! We look forward to servicing your needs.
